The Italindia Packplus Automatic Shrink Packaging Line (Ream Packing and Bundling Line) is designed to pack individual reams using LDPE film with four side seal and then stack them into bundles.
The bundles are manually wrapped withHDPE fabric with aid of wrapping sheet dispenser.
The wrapped bundles are again wrapped in shrink film, sealed on all sides and shrunk by a shrink tunnel and delivered.
The entire line can be grouped into three segments based on the function
- Ream Packing
- Bundles stacking & wrapping station
- Bundle shrink wrapping line

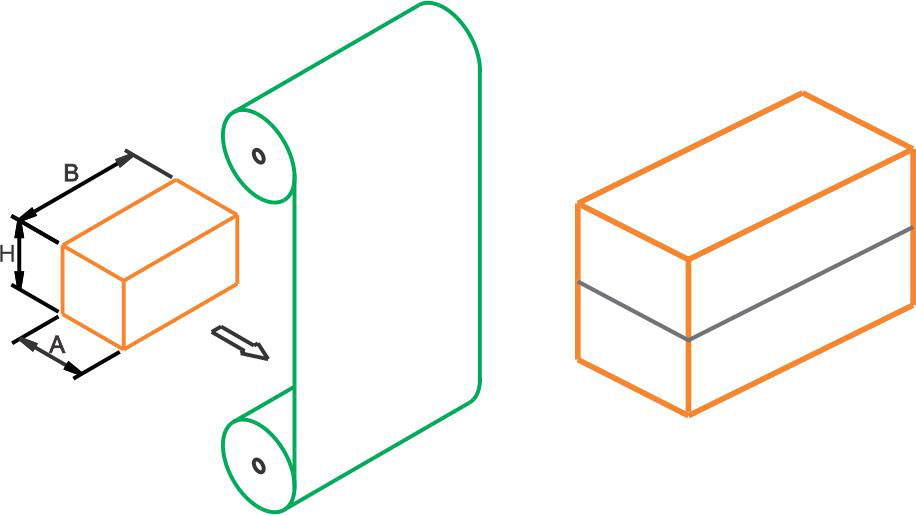

| Product dimensions in mm | |||||
|---|---|---|---|---|---|
| Dimension of ream | Dimension of bundle | ||||
| Min. | Max. | Min. | Max. | ||
| A | 300 | 1050 | 300 | 1050 |
|
| B | 460 | 1050 | 460 | 1050 | |
| H | 10 | 30 | 55 | 300 | |
| Characteristics of Polythylene Film Roll | |
|---|---|
| Minimum bobbin diameter | 70 mm |
| Maximum bobbin diameter | 300 mm |
| Maximum bobbin width for Ream packing film | 1200 mm |
| Maximum bobbin width for Bundle packing film | 1500 mm |
| Minimum Film thickness | 30 µ |
| Maximum Film thickness | 120 µ |
-

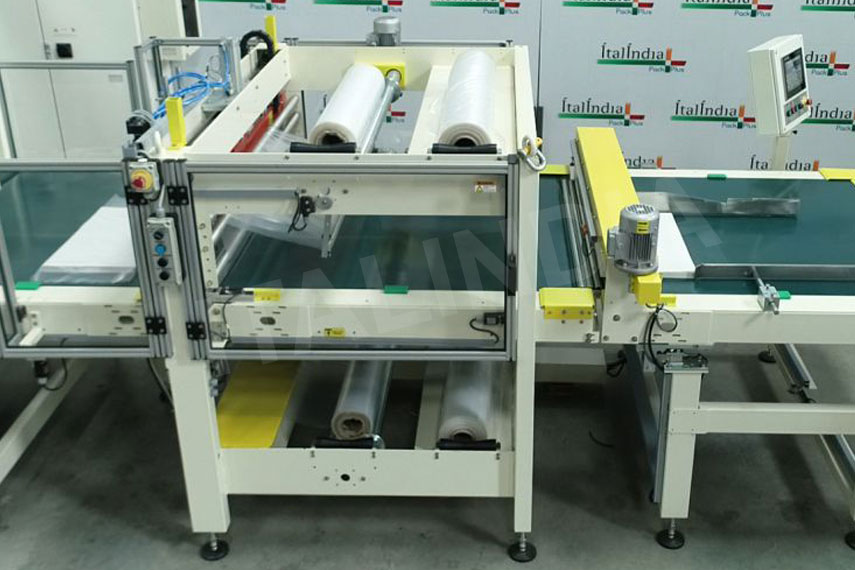

Ream packing station
-

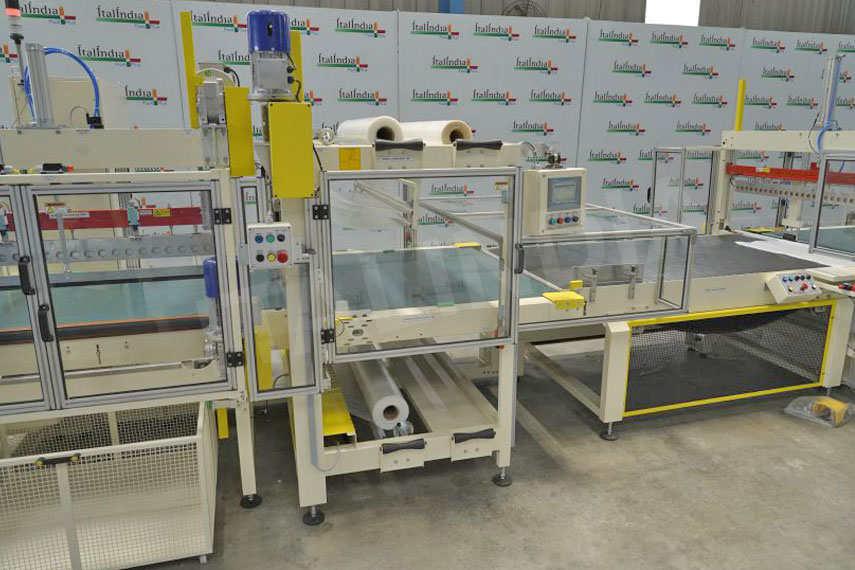

Bundle stacking station
-

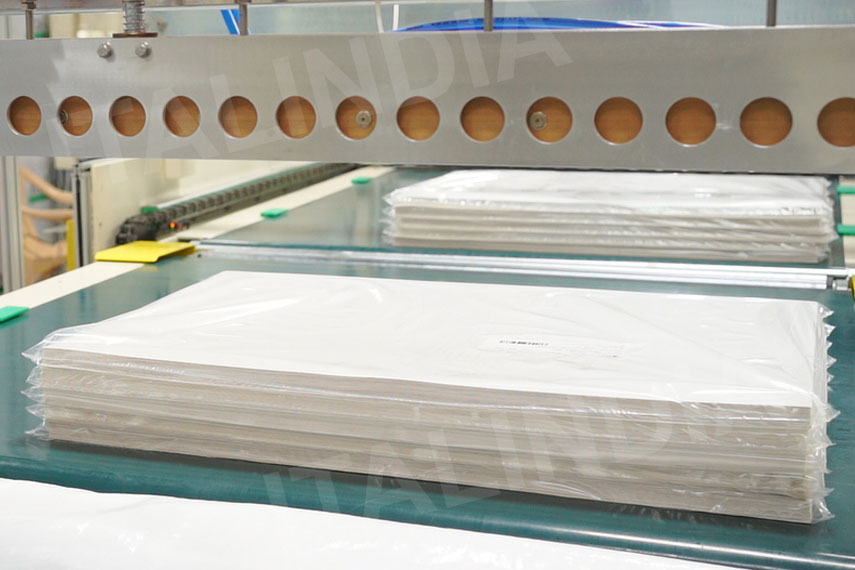

Four side sealed reams
-

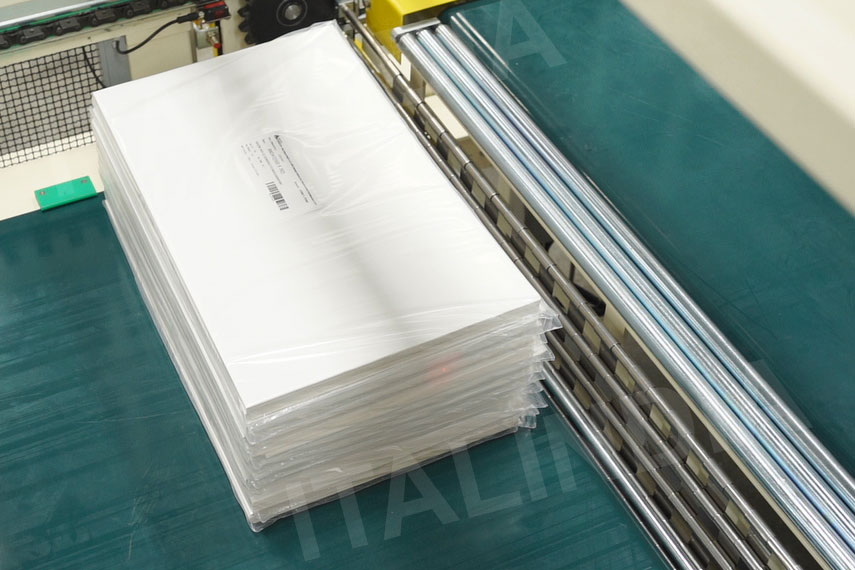

Stacked Reams
-

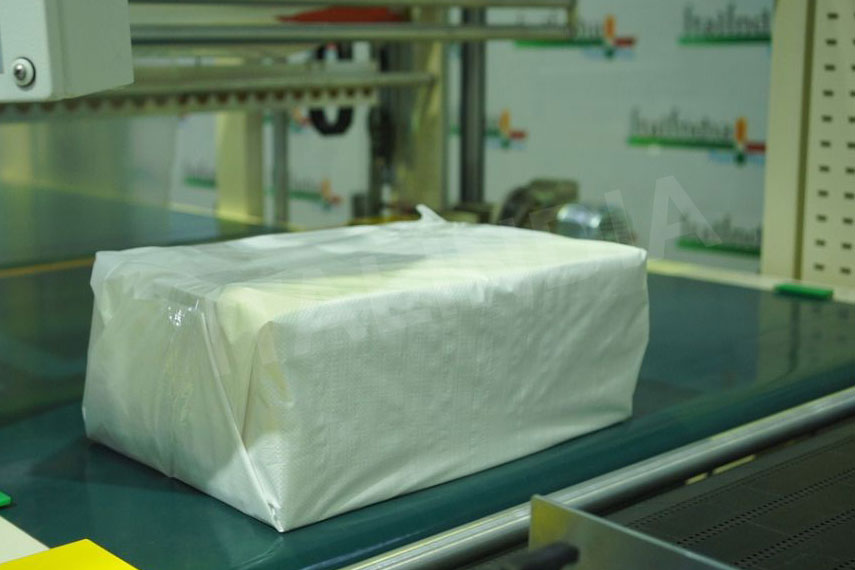

Stacked Reams wrapped with HDPE sheet
-

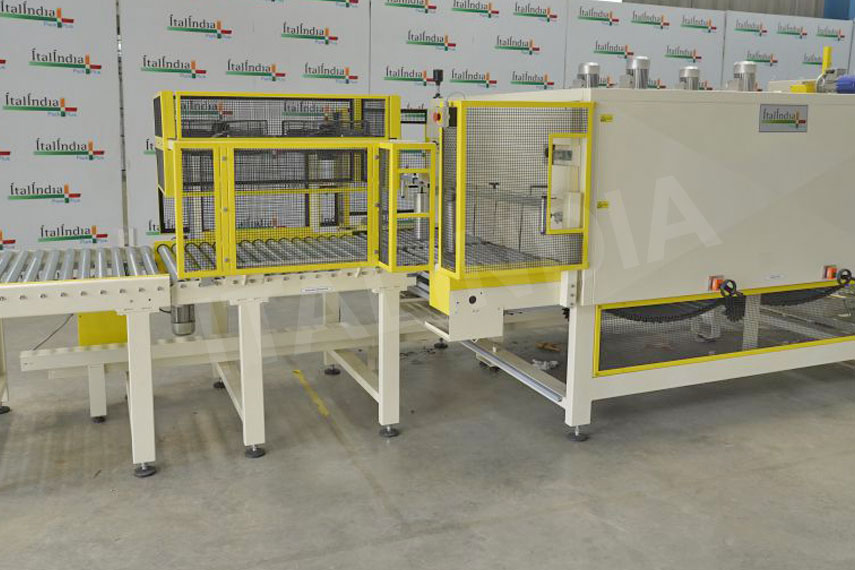

Bundle shrink wrapping station
-

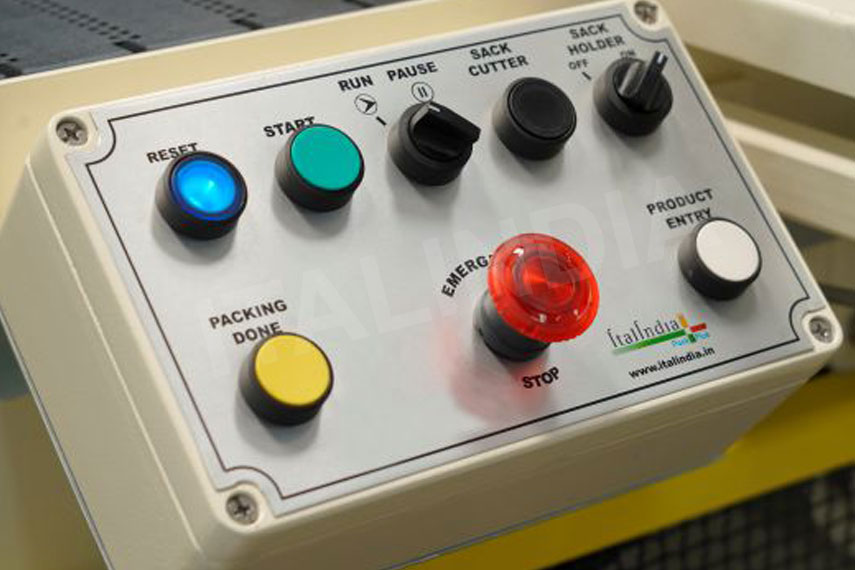

Push button station
-

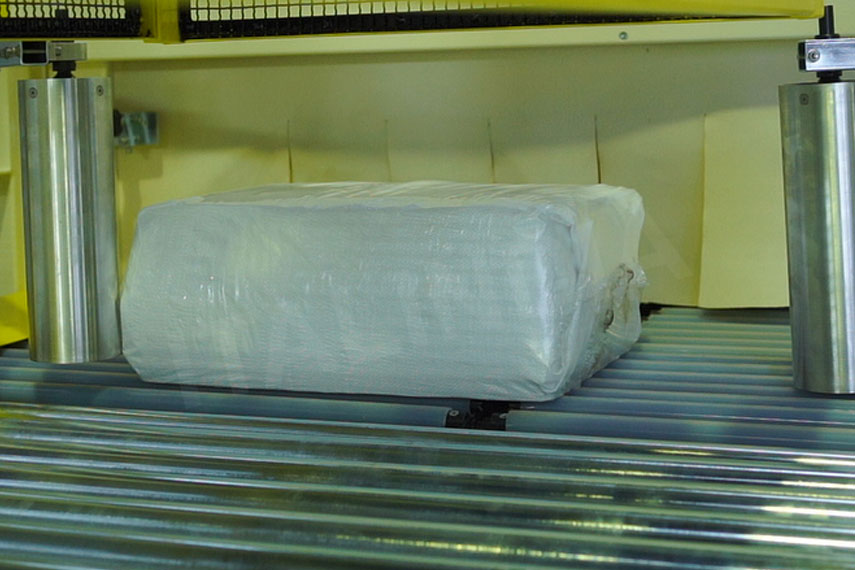

Finished shrink wrapped bundles
